Deep foundations

Drilled shafts, piles, micropiles and inclusions with our own machinery, tools and personnel. Twenty-two projects between 2021 and 2026, with figures and photographic records.

Explore our projects Discover the systems ↓
Ecko Terra Construcción

The group's deep foundation work is carried out under the Ecko Terra Construcción® brand, using our own machinery, tools and personnel. We do not depend on rentals or third parties to start a project, which determines the schedules we can commit to.

08Systems and procedures
14Projects · 2021–2026
14Drilling rigs in our own fleet
From 0.40 to 3.00 min diameter

What we build

Systems and procedures

Each system includes its procedure, the soil layer where it is used and the project where we applied it. Select one to see the details.

01Cast-in-place drilled shafts

Drilling to the design diameter and founding depth, lowering the reinforcement cage and placing concrete through a tremie pipe. Our completed projects have used diameters from 0.40 to 3.00 m and depths of up to 25 m, in Type I and II soils and Type III soils with cobbles and resistance above 50 blows. The borehole is opened in stages using augers, buckets, core barrels and clay buckets of different diameters to suit the layers encountered.

02Driven piles and sheet piles

Driving concrete piles, steel sections and sheet piles. Depending on the soil layer and the vibration that adjacent properties can tolerate, we use an ICE 812 or APE 200-6/700 vibratory driver, or a Mitsubishi M-25 or M-15 pile hammer, supported by a Link Belt, P&H or Lorain crane. Piles are designed for end bearing or shaft friction, as determined by each project's geotechnical study.

03Contiguous and secant piles

Drilled piles installed in a continuous sequence to form a retaining wall. This solution supports adjacent properties or excavation walls before basement excavation, particularly on urban sites with limited space. It uses the same drilling rig, with no additional equipment.

04Slurry and polymer stabilization

When a borehole cannot remain stable on its own, we stabilize it with slurry. We set up the plant on site: mixing and return tanks, pumps and recirculation, with density and viscosity controls. At Puente Garcés, we used bentonite within the excavation at the foot of the existing bridge; at La Pitahaya, we used polymer in a river channel with water-level control.

05Temporary and permanent steel casings

For layers that slurry cannot support: gravel and sand with cobbles. Temporary casing is driven and recovered as concrete placement progresses; permanent casing remains part of the element. At La Pitahaya, we drove 1.60 and 2.10 m casings with a vibratory driver, lifted by crane, and supplied polymer inside them.

06Micropiles and inclusions

Smaller-diameter elements for underpinning, strengthening existing foundations and improving soft soils. They are used where large equipment cannot enter or where the existing structure does not permit the operations required for a large-diameter drilled shaft.

07Reinforcement fabrication and lifting

Fabrication, assembly and lifting of reinforcement for drilled shafts and pile caps, assembled on site. At Pilas Tamazunchale, long reinforcement cages were lifted beside the road; at Pilotes Ejido La Pitahaya, a crane assisted with lifting and lowering the cages.

08Wheel and chain trenching6 projects and animated cutting diagramsShow projects and animationsClose projects and animations

Specialty 08 · Trenching

Wheel
and chain trenching.

Mechanized trench excavation for communication networks, drinking water, drainage, stormwater infrastructure and electrical conduits.

Chain and wheel: explore the cutting process, trench excavation and dimensions for each project.

Explore the projects

Completed projects · 2024–2025

Experience along the trench.

06 PROJECTS

Choose how to explore the projects

View project sheets with photographs, cutting diagrams or both.

Select a view to display the six projects.

Our own equipment to open a path for every network.

Request a trenching quote

Our own tools: augers, buckets, core barrels and clay buckets in various diameters. Tremie pipes for concrete placement, and temporary and permanent casings. We also have hydraulic breakers.

Our own fleet

Our own capacity.
Present at every site.

Drilling rig working at night within the excavation, with the casing being lowered into the borehole

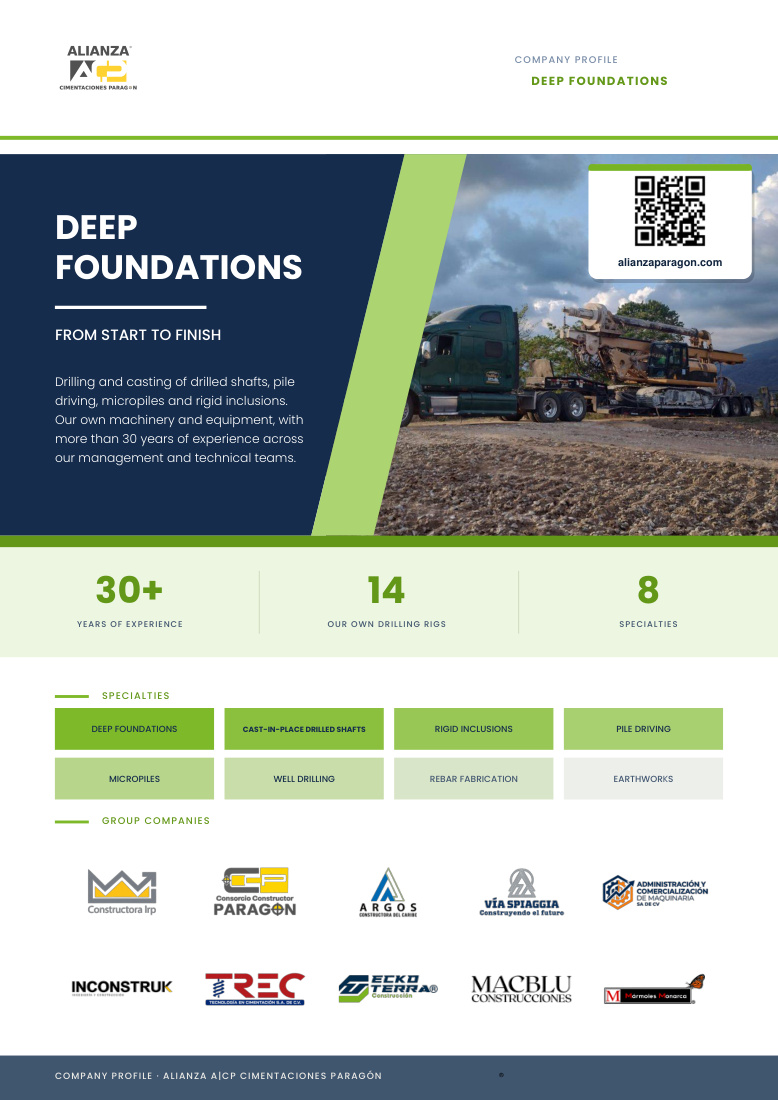

Foundation company profile coverPreview
TECHNICAL DOCUMENT · PDF · 38 PAGES

Foundation company profile

Projects, procedures and execution capacity in one document.

Download company profile ↓View PDF ↗View Ecko Terra brochure ↗

Recent projects

Experience on the ground.

Explore our projects, their soil conditions and photographic records of the work.

Choose how to view the projects

Select a view to open the project sheets.

Projects will appear after you select a view.

Installed capacity

Machinery and equipment

A broad inventory of specialized machinery and equipment available to serve several sites simultaneously.

TOUR OUR EQUIPMENT
Drilling rigs · Ecko Terra equipment
Cranes and vibratory drivers · Ecko Terra equipment
Excavators and backhoes · Ecko Terra equipment
Trenchers and trucks · Ecko Terra equipment
Earthworks · Ecko Terra equipment
Tools · Ecko Terra equipment
Hydraulic breakers · Drilling equipment

FIELD CAPACITY / 01

Drilling rigs

The start of every foundation.

14units in inventory

Equipment and models

  • Sunward SA 20/70
  • Yutong YTR 150
  • Soilmec R-412, R-312 and RT3E
  • Casagrande B175XP, B125XP and B100XP
  • Maicat MC180
  • Tescar SF 35 and CF 3
  • Texoma 950
  • EZ 90-52
  • Sany SR-150C

FIELD CAPACITY / 02

Cranes and vibratory drivers

Lifting and driving on site.

8units in inventory

Equipment and models

  • Lorain CD118 crane
  • P&H 5576 crane
  • Link Belt LS108 and LS98 cranes
  • ICE 812 vibratory driver
  • APE 200-6/700 vibratory driver
  • Mitsubishi M-25 and M-15 pile hammers

FIELD CAPACITY / 03

Excavators and backhoes

Excavation and material handling.

12units in inventory

Equipment and models

  • Komatsu PC 450 LC
  • Caterpillar 336D2L, 336DL, 320GX, 320DL and 416F2
  • John Deere 210 C, 210 G, 310J and 310G
  • Case 580 N
  • JCB 3CX

FIELD CAPACITY / 04

Trenchers and trucks

Trench excavation and drilling.

8units in inventory

Equipment and models

  • Ditch Witch RT-115 and RT-110 (wheel)
  • Vermeer RTX1250 and C306 (wheel)
  • Trencor 860C and 660B (chain)
  • 1996 Peterbilt drilling truck
  • 1992 Dunham MP225E drilling truck

FIELD CAPACITY / 05

Earthworks

Ground preparation and grading.

Group inventory

Equipment and models

  • Caterpillar 12H motor grader
  • Dynapac CA250 and CA2500D vibratory rollers
  • Caterpillar D6 dozers

FIELD CAPACITY / 06

Tools

The right tool for every stage.

Group inventory

Equipment and models

  • Augers in various diameters
  • Drilling buckets in various diameters
  • Core barrels in various diameters
  • Clay buckets in various diameters
  • Tremie pipes for concrete placement
  • Temporary and permanent casings

FIELD CAPACITY / 07

Hydraulic breakers

Tools for demolition and fragmentation work.

Group inventory

Available equipment

  • Hydraulic breakers

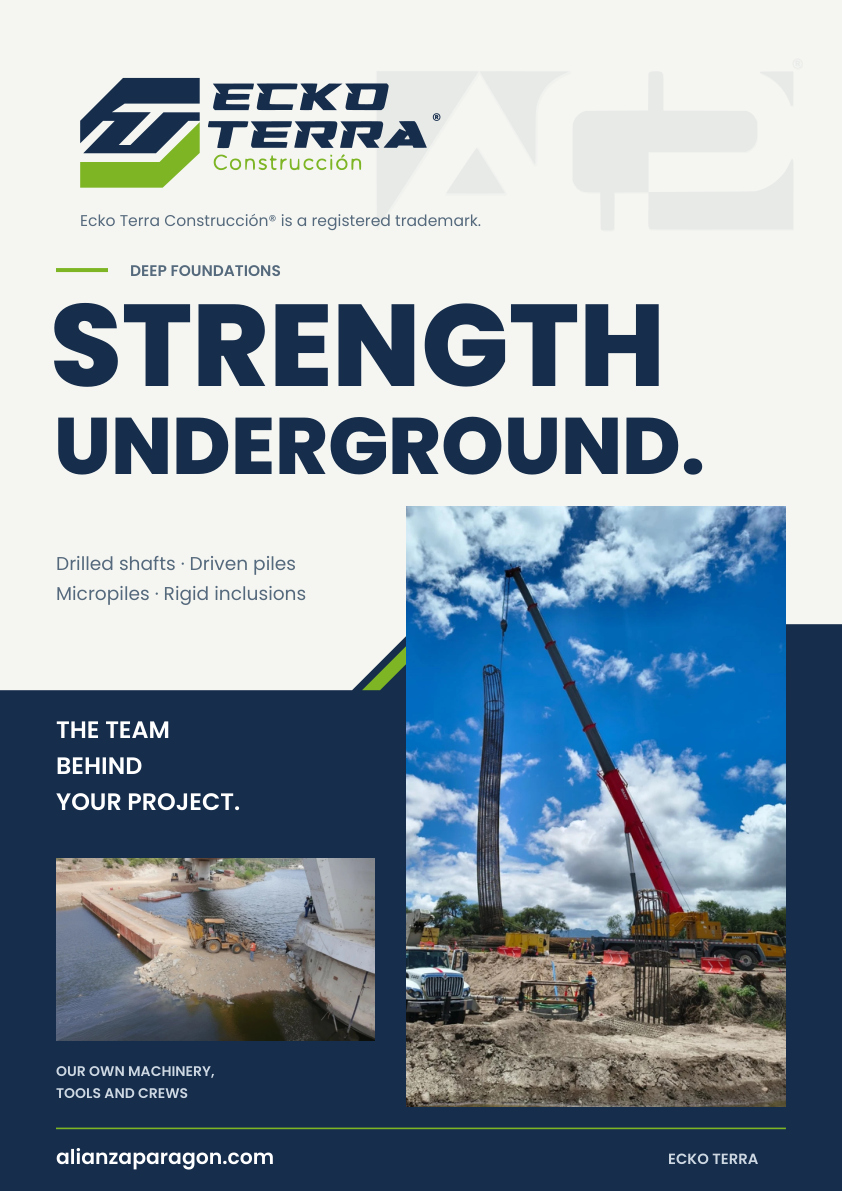

ECKO TERRA CONSTRUCCIÓN®Strength
below ground.Preview

SPECIALIST PARTNERSHIPS

Combined capabilities.

TREC

TREC Tecnología en Cimentación, S.A. de C.V.

A shared workforce

In foundation work, we combine our workforce with TREC to execute projects together.

Drilling rigs and personnel working at a TREC foundation site
A shared workforce.
EARTH RETENTION ENGINEERING
Grupo LCI symbolGRUPO LCI

Retaining the ground.
Shaping the project.

Mechanically stabilized earth walls for roads, bridges and access routes. A specialty that complements our foundation work.

01 / ENGINEERING

Earth retention solutions tailored to each project.

02 / EXECUTION

Fabrication and installation with LCI personnel and equipment.

Commercial partnership with Grupo LCI, holder of the Humus Stabilis patent.

Grupo LCI retaining walls along a road
Engineering that supports the road.
Installation of hexagonal panels for a Grupo LCI wall
On-site installation
Road infrastructure from the Grupo LCI gallery
Integration with the surroundings
